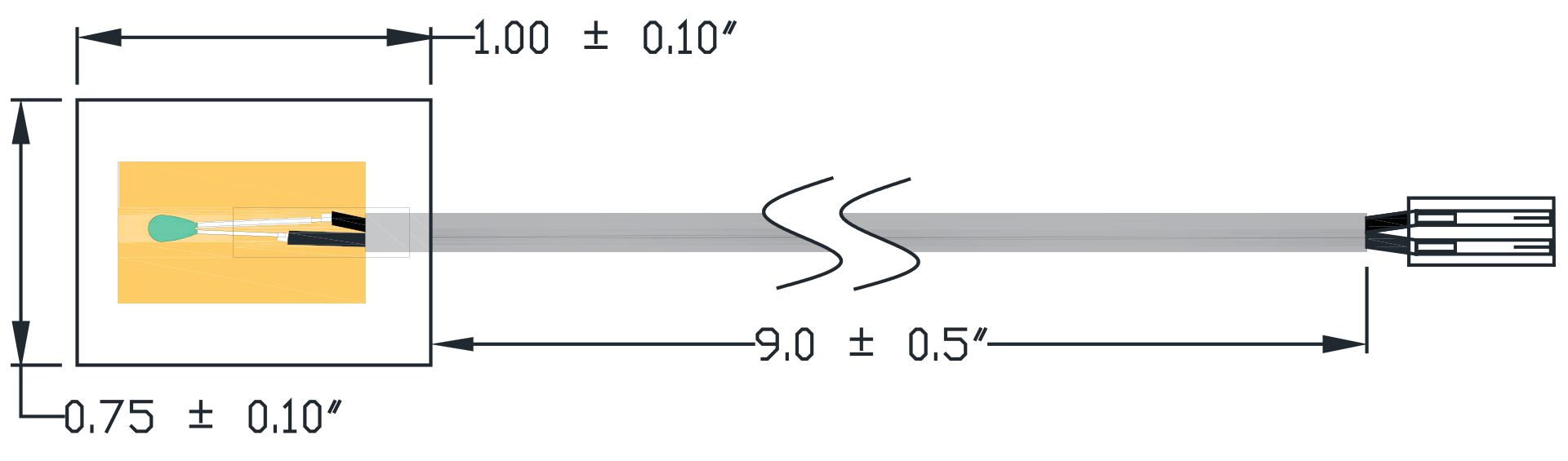

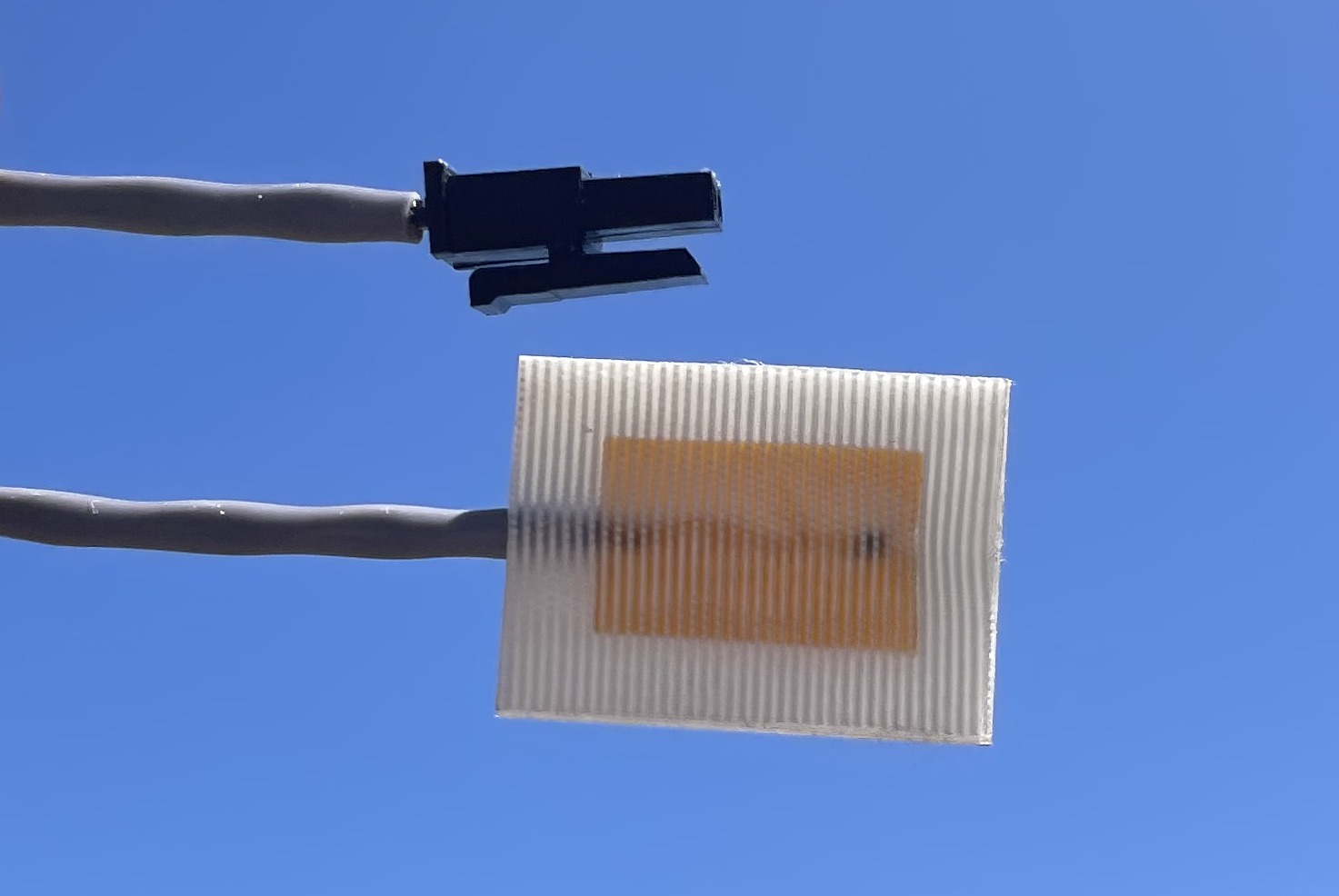

SP01 NTC Thermistor Surface Probe
SP01 NTC Thermistor Surface Probe
Description:
The SP01 NTC thermistor surface probe features a non-permanent, removable adhesive backing, making it perfect for measuring the temperature of a surface. The probe has a connector for ease of use.
Features:
- Non-permanent, removable adhesive backing
- Precise over a wide temperature band
- Connector for ease of use
The SP01 NTC thermistor probe has a removable adhesive backing on one side, and a connector on the test end making this product fast to install and easy to use. The standard connector on this part is Molex #43645 to be connected to Molex #43640. This part can be built with custom thermistors, cable lengths, sizes, and connectors to suit your needs. Contact us at info@northstarsensors.com for assistance with your unique application.
This product is not water-tight and is not meant for use submerged in liquids or in high humidity environments. RoHS compliant.
Applications:
- Battery monitoring
- Container surfaces
- Equipment safety
- Temperature controllers
SP01 NTC Thermistor Surface Probe
Typical Configurations:
| Part Number | Resistance at 25 °C |
Temperature Tolerance | R/T Curve |
25 °C / 85 °C β |
|---|---|---|---|---|
| SP01-103R44T1A | 10 KΩ | ± 0.1 °C from 0 °C to 70 °C | 44 | 3978 |
| SP01-103R44T5A | 10 KΩ | ± 0.5 °C from 0 °C to 70 °C | 44 | 3978 |
| SP01-303R43T2A | 30 KΩ | ± 0.2 °C from 0 °C to 70 °C | 43 | 3943 |
| SP01-351R38P2 | 350 Ω | ± 2% Ω at 25 °C | 38 | 3486 |
A wide variety of configurations are possible. Contact us at
info@northstarsensors.com for assistance with your unique application.
Other Specifications:
| Operating Temperature | 0 °C to 70 °C |
|---|---|
| Operating Environment | Air with low to mild humidity |
| Recommended Measurement Current | < 50 µA |
| Standard Connector | Molex #43645 |
| RoHS and REACH | Compliant |
Resistance vs Temperature Conversion Tables
| °C | CURVE 38 | CURVE 43 | CURVE 44 | |||
|---|---|---|---|---|---|---|
| Ω RATIO | NTC | Ω RATIO | NTC | Ω RATIO | NTC | |
| RT / R25 | (%/°C) | RT / R25 | (%/°C) | RT / R25 | (%/°C) | |
| -10 | 4.459 | -4.75 | 5.2658 | -5.24 | 5.5325 | -5.44 |
| -5 | 3.530 | -4.60 | 4.0680 | -5.09 | 4.2325 | -5.27 |
| 0 | 2.815 | -4.46 | 3.1660 | -4.94 | 3.2651 | -5.11 |
| 5 | 2.260 | -4.33 | 2.4815 | -4.80 | 2.5393 | -4.95 |
| 10 | 1.826 | -4.20 | 1.9583 | -4.67 | 1.9901 | -4.80 |
| 15 | 1.485 | -4.07 | 1.5556 | -4.54 | 1.5712 | -4.66 |
| 20 | 1.215 | -3.95 | 1.2434 | -4.42 | 1.2493 | -4.52 |
| 25 | 1.000 | -3.84 | 1.0000 | -4.30 | 1.0000 | -4.39 |
| 30 | 0.8276 | -3.73 | 0.80892 | -4.18 | 0.80567 | -4.26 |
| 35 | 0.6885 | -3.63 | 0.65804 | -4.07 | 0.65314 | -4.14 |
| 40 | 0.5758 | -3.53 | 0.53820 | -3.97 | 0.53266 | -4.02 |
| 45 | 0.4840 | -3.43 | 0.44249 | -3.87 | 0.43689 | -3.91 |
| 50 | 0.4087 | -3.33 | 0.36563 | -3.77 | 0.36031 | -3.81 |
| 55 | 0.3467 | -3.24 | 0.30357 | -3.67 | 0.29857 | -3.71 |
| 60 | 0.2954 | -3.16 | 0.25323 | -3.58 | 0.24869 | -3.61 |
| 65 | 0.2528 | -3.07 | 0.21219 | -3.49 | 0.20816 | -3.51 |
| 70 | 0.2172 | -2.99 | 0.17858 | -3.41 | 0.17508 | -3.42 |
| 75 | 0.1874 | -2.92 | 0.15093 | -3.32 | 0.14793 | -3.33 |
| 80 | 0.1622 | -2.84 | 0.12808 | -3.24 | 0.12554 | -3.24 |
| 85 | 0.1410 | -2.77 | 0.10912 | -3.17 | 0.10700 | -3.16 |
Please visit northstarsensors.com/temperature-curves
for additional tables
