North Star Sensors - Store
Minimum order size is $20.
10% discount on orders over $100.
20% discount on order over $500.
Rigid Probe Thermistors
Engineered for fast assembly into probes
Designed for mass production at competitive prices
Small profile for use in fast time response probes

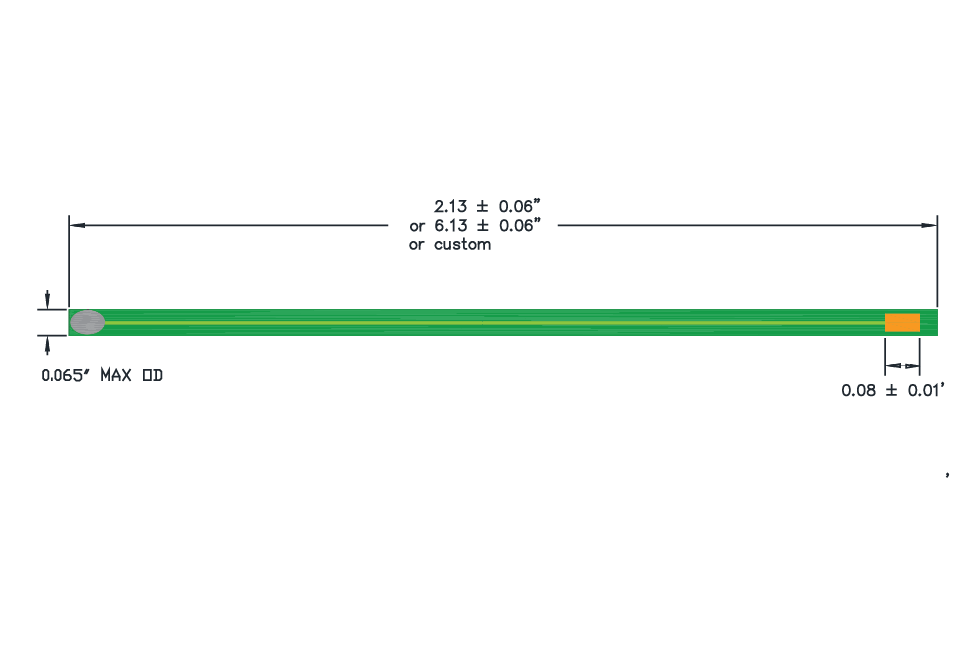

Epoxy coated sensor at one end, two solder pads separated by insulator on other end
Micro and Mini Thermistors
10 kΩ at 25 °C, curve 44
± 0.2 °C from 0 °C to 70 °C

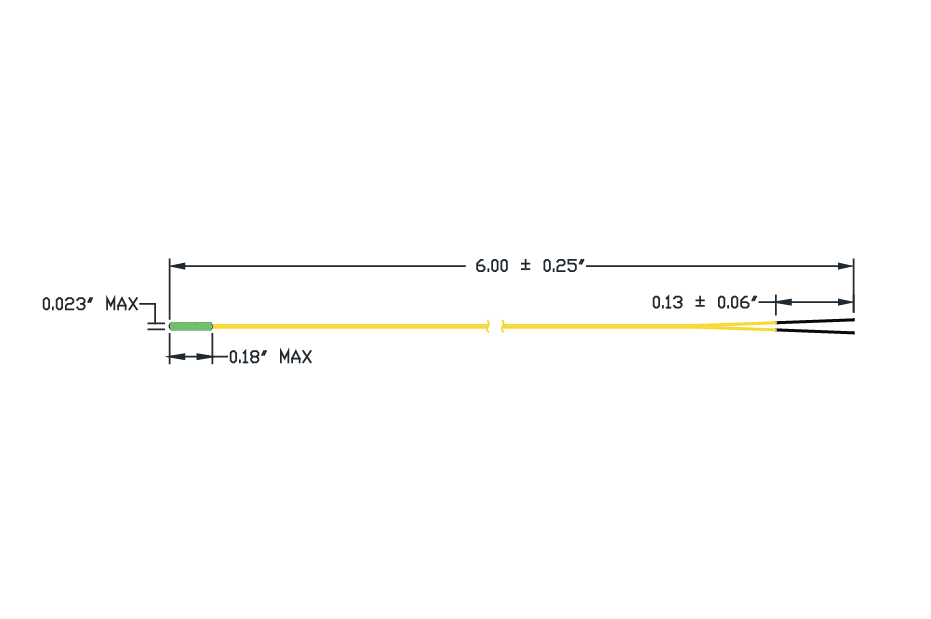

Micro NTC thermistor with 38 AWG, 6” insulated leads.
30 kΩ at 25 °C, curve 44
± 0.1 °C from 0 °C to 70 °C
Mini NTC thermistor with 38 AWG, 3” insulated leads.
10 kΩ at 25 °C, curve 44
± 0.2 °C from 0 °C to 70 °C
Mini NTC thermistor with 38 AWG, 3” insulated leads.
Leaded Thermistors
10 kΩ at 25 °C, Curve 44
± 0.1 °C from 0 °C to 70 °C
NTC thermistor with 2”, 30 AWG, tin-plated copper leads
10 kΩ at 25 °C, curve 44
± 0.5 °C from 0 °C to 70 °C
NTC thermistor with 2”, 30 AWG, tin-plated copper leads
Thermistor Probes
Non-permanent, removable adhesive backing great for surface measurement
10 kΩ at 25 °C, curve 44
± 0.1 °C from 0 °C to 70 °C
