Datasheet
MP01 NTC Thermistor Micro Probe

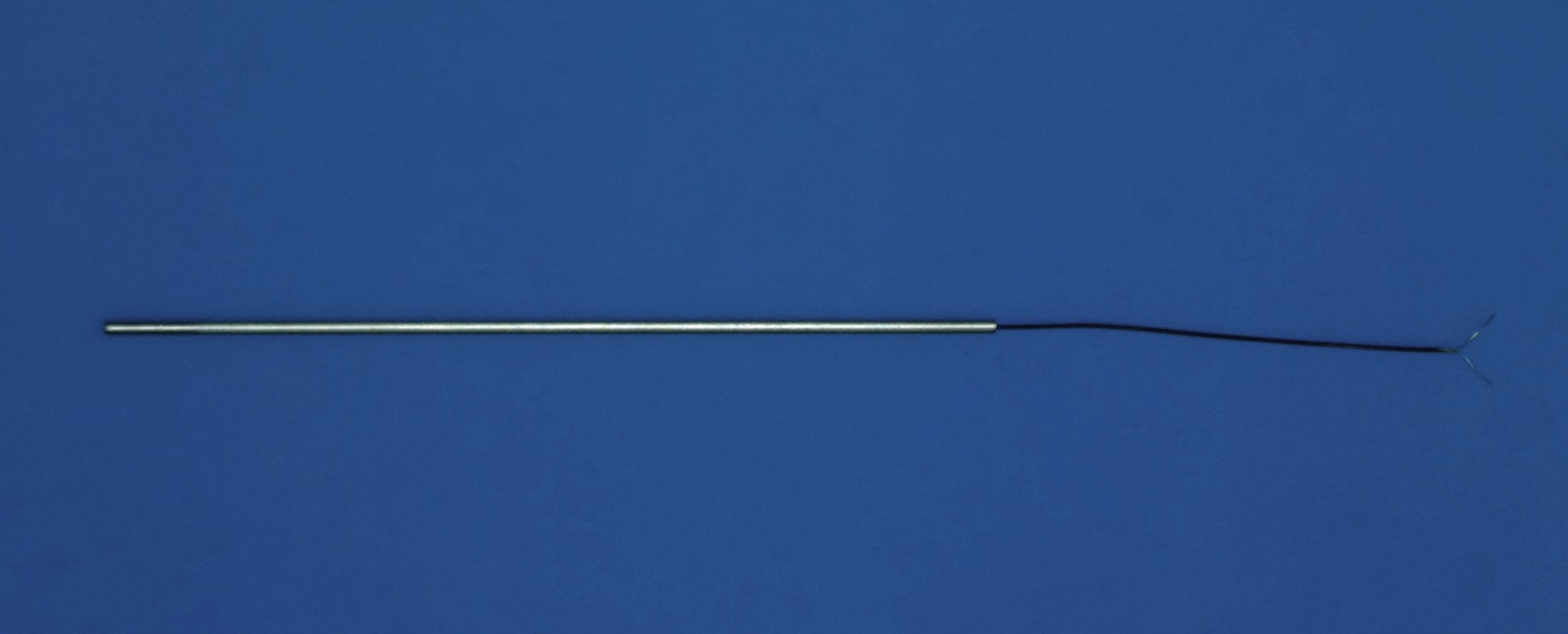

MP01 NTC Thermistor Micro Probe
Description:
The MP01 NTC thermistor micro probes can fit inside small spaces and have phenomenal time response — all with excellent environmental protection inside a tiny 0.032” OD stainless steel housing.
Features:
- Fast time response
- Protected inside 0.032” OD stainless steel housing
- Precise over a wide temperature band
The MP01 NTC thermistor micro probe is incredibly useful for it’s ability to fit inside very small spaces while having excellent time response and environmental protection. Additionally, this part can be made with high accuracy, interchangable, high stability thermistors making it very usefuly for a wide variety of applications. This part can be built with custom thermistors, cable lengths, sizes, and connectors to suit your needs. Contact us at info@northstarsensors.com for assistance with your unique application. RoHS compliant.
Applications:
- Medical devices
- Laboratory equipment
- Weather instruments
- Temperature controllers

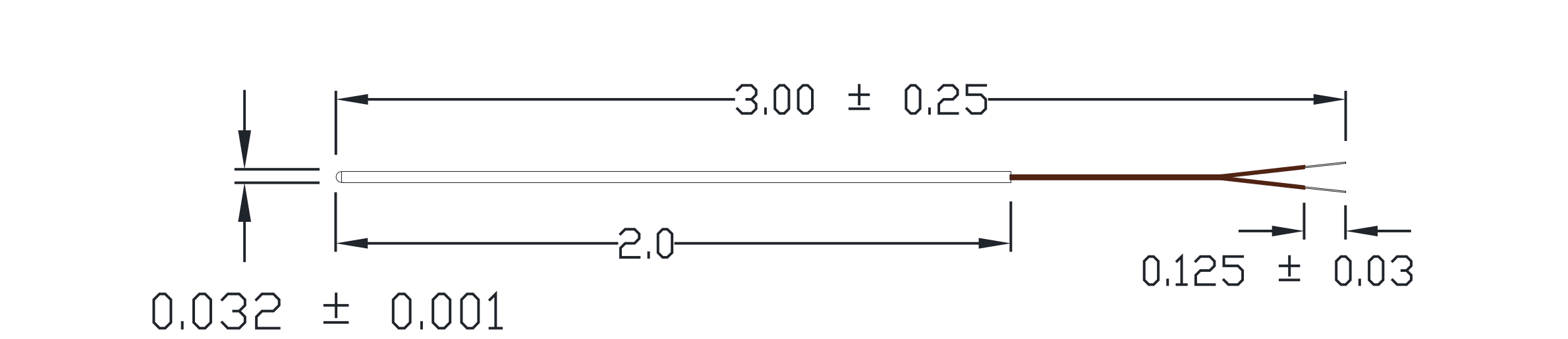

MP01 NTC Thermistor Micro Probe
Typical Configurations:
| Part Number | Resistance at 25 °C |
Temperature Tolerance | R/T Curve |
Housing Length |
Overall Length |
|---|---|---|---|---|---|
| MP01-103R44T2A | 10 KΩ | ± 0.2 °C from 0 °C to 70 °C | 44 | 2” | 3” |
| MP01-103R44T1A | 10 KΩ | ± 0.1 °C from 0 °C to 70 °C | 44 | 2” | 3” |
| MP02-103R44T5A | 10 KΩ | ± 0.5°C from 0 °C to 70 °C | 44 | 1” | 1.8” |
A wide variety of configurations are possible. Contact us at
info@northstarsensors.com for assistance with your unique application.
Other Specifications:
| Operating Temperature | 0 °C to 100 °C |
|---|---|
| Max Temperature | 125 °C |
| Recommended Measurement Current | < 50 µA |
| Time Constant | < 400 ms in stirred liquid |
| RoHS and REACH | Compliant |
Resistance vs Temperature Conversion Tables
| °C | CURVE 44 | |
|---|---|---|
| Ω RATIO | NTC | |
| RT / R25 | (%/°C) | |
| -10 | 5.5325 | -5.44 |
| -5 | 4.2325 | -5.27 |
| 0 | 3.2651 | -5.11 |
| 5 | 2.5393 | -4.95 |
| 10 | 1.9901 | -4.80 |
| 15 | 1.5712 | -4.66 |
| 20 | 1.2493 | -4.52 |
| 25 | 1.0000 | -4.39 |
| 30 | 0.80567 | -4.26 |
| 35 | 0.65314 | -4.14 |
| 40 | 0.53266 | -4.02 |
| 45 | 0.43689 | -3.91 |
| 50 | 0.36031 | -3.81 |
| 55 | 0.29857 | -3.71 |
| 60 | 0.24869 | -3.61 |
| 65 | 0.20816 | -3.51 |
| 70 | 0.17508 | -3.42 |
| 75 | 0.14793 | -3.33 |
| 80 | 0.12554 | -3.24 |
| 85 | 0.10700 | -3.16 |
Please visit northstarsensors.com/temperature-curves
for additional tables
