Datasheet
5XT Mini NTC Thermistor
5XT Mini NTC Thermistor
Description:

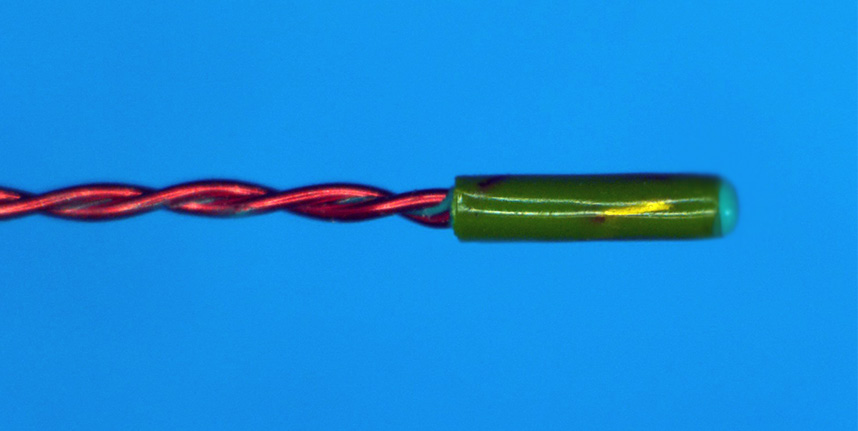

Mini chip thermistor encapsulated with epoxy in polyimide tube with red polyurethane nylon insulated 32 AWG leads, twisted pair, with multiple overall length options.
Features:
- Small with low thermal mass
- Precise over a wide temperature band
- More affordable than 3XT series micro thermistor
The 5XT mini series is a small leaded standard thermistor package that North Star Sensors offers. The 5XT is ideal for applications where a fast time response is desired and/or mounting space is limited. The small size of the 5XT thermistor allows it to be encapsulated into small housings while being more affordable than the 3XT micro series. Pre-tinned leads and custom designs are available. Contact us at info@northstarsensors.com for assistance with your unique application.
Applications:
- Low volume flow sensors (liquids or gas)
- Small package electronics
- Meteorological research
- Peltier temperature tracking

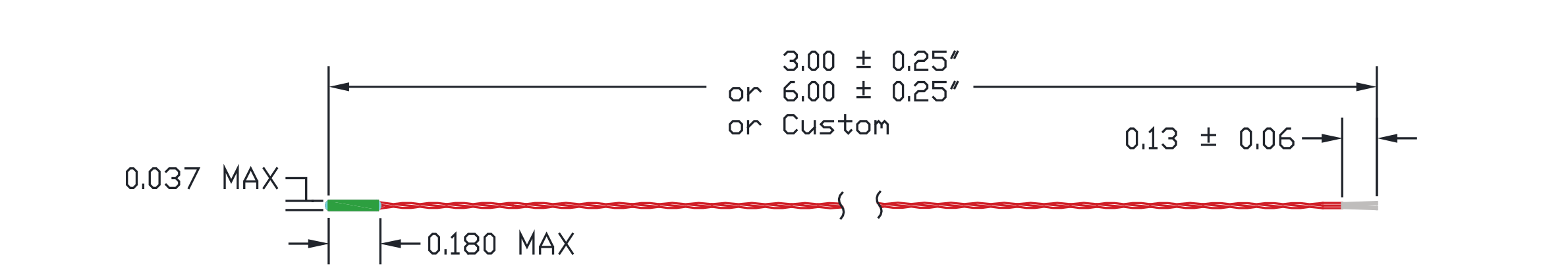

5XT Mini NTC Thermistor
Typical Configurations:
| Part Number | Resistance at 25 °C |
Overall Length | Temperature Tolerance |
R/T Curve |
25 °C / 85 °C β |
|---|---|---|---|---|---|
| 5BT103R44T2A | 10 kΩ | 6.00 ± 0.25” | ± 0.2 °C from 0 °C to 70 °C | 44 | 3978 |
| 5AT104R47T2A | 100 kΩ | 3.00 ± 0.25” | ± 0.2 °C from 0 °C to 70 °C | 47 | 4262 |
| 5AT222R44T1M | 2252 Ω | 3.00 ± 0.25” | ± 0.1 °C from 35 °C to 40 °C | 44 | 3978 |
A wide variety of configurations are possible. Contact us at
info@northstarsensors.com for assistance with your unique application.
Other Specifications:
| Normal Operating Temperature | 0 °C to 70 °C |
|---|---|
| Max Temperature | 125 °C |
| Recommended Measurement Current | < 25 µA |
| Time Constant | < 400 ms in stirred liquid |
| Dissipation Constant | ~ 1.5 mW / °C in ambient air |
| RoHS and REACH | Compliant |
Resistance vs Temperature Conversion Table
| °C | CURVE 43 | CURVE 44 | CURVE 47 | |||
|---|---|---|---|---|---|---|
| Ω RATIO | NTC | Ω RATIO | NTC | Ω RATIO | NTC | |
| RT / R25 | (%/°C) | RT / R25 | (%/°C) | RT / R25 | (%/°C) | |
| 0 | 3.1660 | -4.94 | 3.2651 | -5.11 | 3.51020 | -5.40 |
| 5 | 2.4815 | -4.80 | 2.5393 | -4.95 | 2.69037 | -5.24 |
| 10 | 1.9583 | -4.67 | 1.9901 | -4.80 | 2.07803 | -5.09 |
| 15 | 1.5556 | -4.54 | 1.5712 | -4.66 | 1.61702 | -4.94 |
| 20 | 1.2434 | -4.42 | 1.2493 | -4.52 | 1.26728 | -4.80 |
| 25 | 1.0000 | -4.30 | 1.0000 | -4.39 | 1.00000 | -4.67 |
| 30 | 0.80892 | -4.18 | 0.80567 | -4.26 | 0.79430 | -4.54 |
| 35 | 0.65804 | -4.07 | 0.65314 | -4.14 | 0.63490 | -4.42 |
| 40 | 0.53820 | -3.97 | 0.53266 | -4.02 | 0.51059 | -4.30 |
| 45 | 0.44249 | -3.87 | 0.43689 | -3.91 | 0.41302 | -4.18 |
| 50 | 0.36563 | -3.77 | 0.36031 | -3.81 | 0.33598 | -4.07 |
| 55 | 0.30357 | -3.67 | 0.29857 | -3.71 | 0.27479 | -3.97 |
| 60 | 0.25323 | -3.58 | 0.24869 | -3.61 | 0.22593 | -3.87 |
| 65 | 0.21219 | -3.49 | 0.20816 | -3.51 | 0.18669 | -3.77 |
| 70 | 0.17858 | -3.41 | 0.17508 | -3.42 | 0.15502 | -3.67 |
Please visit northstarsensors.com/temperature-curves
for additional tables
