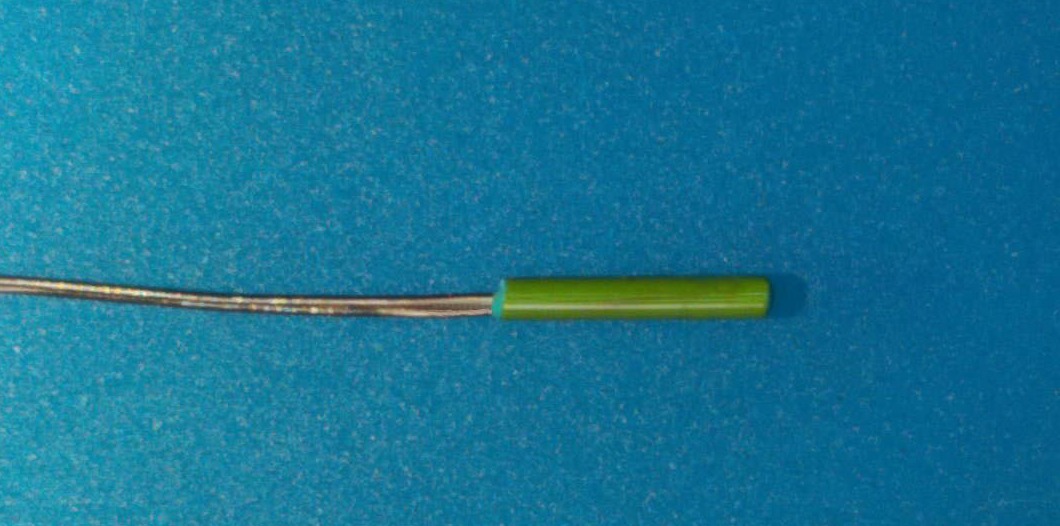

3XT Micro NTC Thermistor
3XT Micro NTC Thermistor
Description:
Micro chip thermistor encapsulated with epoxy in polyimide tube with brown polyesterimide insulated 38 AWG leads, parallel-bonded, with multiple overall length options.
Features:
- Small with low thermal mass
- Precise over a wide temperature band
- Rapid Time Constant (typ. <200 Milliseconds in liquids)
The 3XT is the smallest leaded standard thermistor package that North Star Sensors offers. The 3XT is ideal for applications where a fast time response is desired and/ or mounting space is limited. The small size of the 3XT thermistor allows it to be encapsulated into a 20 gauge thin wall stainless steel tube. Pre-tinned leads and custom designs are available. Contact us at info@northstarsensors.com for assistance with your unique application.
Applications:
- Low volume flow sensors (liquids or gas)
- Small package electronics
- Meteorological research
- Peltier temperature tracking
3XT Micro NTC Thermistor

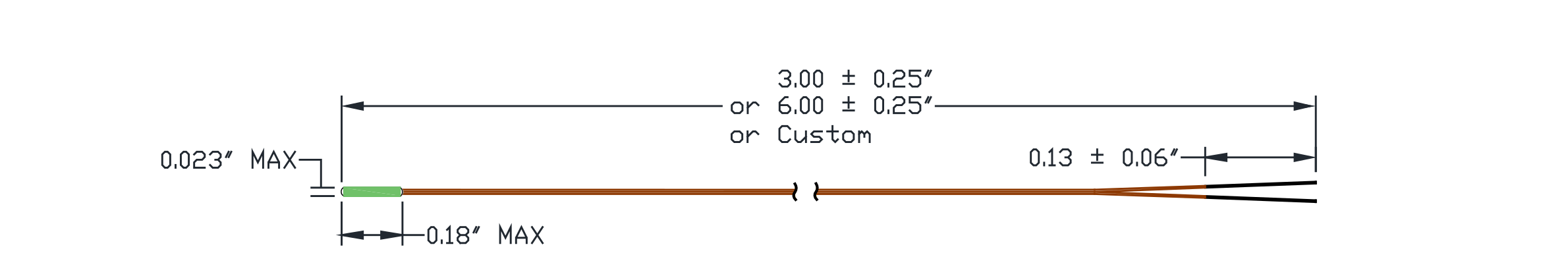

Typical Configurations:
| Part Number | Resistance at 25 °C |
Overall Length | Temperature Tolerance |
R/T Curve |
25 °C / 85 °C β |
|---|---|---|---|---|---|
| 3AT103R44T2A | 10 kΩ | 3.00 ± 0.25” | ± 0.2 °C from 0 °C to 70 °C | 44 | 3978 |
| 3BT103R44T2A | 10 kΩ | 6.00 ± 0.25” | ± 0.2 °C from 0 °C to 70 °C | 44 | 3978 |
| 3AT103R44T1A | 10 kΩ | 3.00 ± 0.25” | ± 0.1 °C from 0 °C to 70 °C | 44 | 3978 |
A wide variety of configurations are possible. Contact us at
info@northstarsensors.com for assistance with your unique application.
Other Specifications:
| Normal Operating Temperature | 0 °C to 70 °C |
|---|---|
| Max Temperature | 125 °C |
| Recommended Measurement Current | < 25 µA |
| Time Constant | < 200 ms in stirred liquid |
| Dissipation Constant | ~ 0.3 mW / °C in ambient air |
| RoHS and REACH | Compliant |
Resistance vs Temperature Conversion Table
| °C | CURVE 44 | |
|---|---|---|
| Ω RATIO | NTC | |
| RT / R25 | (%/°C) | |
| -10 | 5.5325 | -5.44 |
| -5 | 4.2325 | -5.27 |
| 0 | 3.2651 | -5.11 |
| 5 | 2.5393 | -4.95 |
| 10 | 1.9901 | -4.80 |
| 15 | 1.5712 | -4.66 |
| 20 | 1.2493 | -4.52 |
| 25 | 1.0000 | -4.39 |
| 30 | 0.80567 | -4.26 |
| 35 | 0.65314 | -4.14 |
| 40 | 0.53266 | -4.02 |
| 45 | 0.43689 | -3.91 |
| 50 | 0.36031 | -3.81 |
| 55 | 0.29857 | -3.71 |
| 60 | 0.24869 | -3.61 |
| 65 | 0.20816 | -3.51 |
| 70 | 0.17508 | -3.42 |
| 75 | 0.14793 | -3.33 |
| 80 | 0.12554 | -3.24 |
| 85 | 0.10700 | -3.16 |
Please visit northstarsensors.com/temperature-curves
for additional tables
